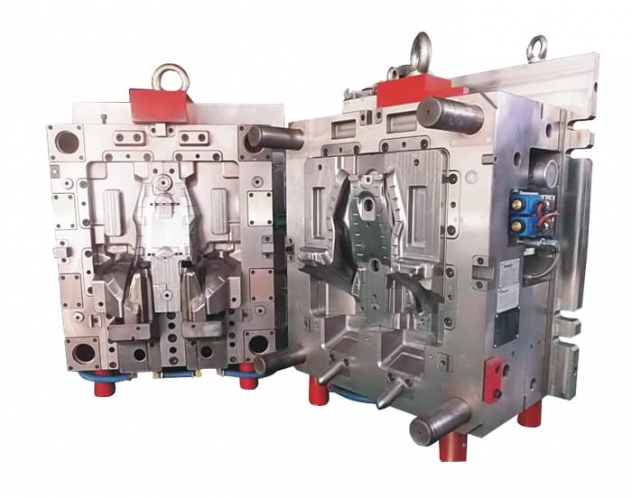

Plastic injection molding, used for Leaf Screen End LHS&RHS
Part name: Leaf Screen End LHS&RHS
Product Resin: TPE(PP/EPDM)A90
No.of cavity(ies): 1L+1R
Mold size (mm): 760X660X851
Machine tonnage: 350T
Mould delivery time: 45-60days
Moulding design and produce.
GET PRICE BY MAIL
Product Resin: TPE(PP/EPDM)A90
No.of cavity(ies): 1L+1R
Mold size (mm): 760X660X851
Machine tonnage: 350T
Mould delivery time: 45-60days
Moulding design and produce.
Description
General information
| 1 | Customer | / | 12 | Mold size (mm) | 760X660X851 |
| 2 | Project Name | AM600 | 13 | Cavity side metarial | Export P20（1.2738H） |
| 3 | Part name | Leaf Screen End LHS&RHS | 14 | Core side material | Export P20（1.2738H） |
| 4 | Part No. | KY63-020E46-A | 15 | Surface Finish - Cav | Grain GRAVUTEX S194 |
| 5 | Tooling No. | CO17008 | 16 | Surface Finish - Cor | Commercial polish |
| 6 | No.of cavity(ies) | 1L+1R | 17 | Tooling Type | 2-plate mold |
| 7 | Product Resin | TPE(PP/EPDM)A90 | 18 | Gate Type | 2dops edge gate on each part |
| 8 | Shrinkage | 1.30% | 19 | hot runner system(No.of drop) | Synventive 2 valve hot tip |
| 9 | Part Size | 349.5X153.8X157.9 | 20 | Machine tonnage | 350T |
| 10 | Part Weight(g) | 128X2 | 21 | Designed | Tom |
| 11 | Part color | MATT BLACk TORAL9004 | 22 | Date | 03.03.2017 |
