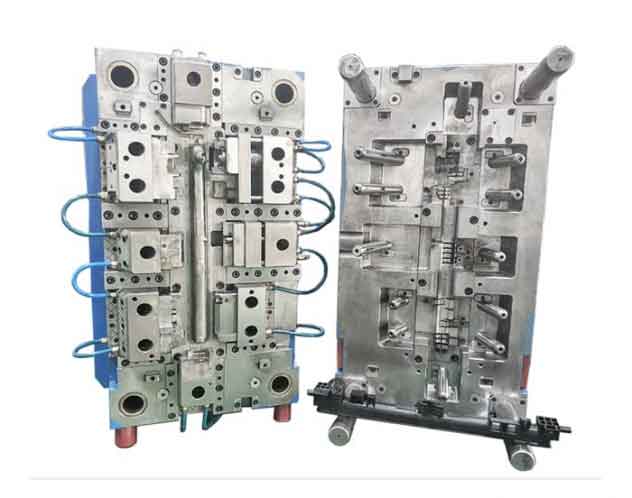

Custom plastic injection molding, aftersale service provided, With injection mold
Part name: Water TANK
Product Resin: PA66+GF30
No.of cavity(ies): 1
Mold size (mm): 600X940X644
Machine tonnage: 450T
Mould delivery time: 45-60days
Moulding design and produce.
GET PRICE BY MAIL
Product Resin: PA66+GF30
No.of cavity(ies): 1
Mold size (mm): 600X940X644
Machine tonnage: 450T
Mould delivery time: 45-60days
Moulding design and produce.
Description
General information
| 1 | Customer | / | 12 | Mold size (mm) | 600X940X644 |
| 2 | Project Name | / | 13 | Cavity side metarial | Export 1.2344 |
| 3 | Part name | Water TANK | 14 | Core side material | Export 1.2344 |
| 4 | Part No. | 1301602XKQ00A | 15 | Surface Finish - Cav | 600# |
| 5 | Tooling No. | CO17101 | 16 | Surface Finish - Cor | 600# |
| 6 | No.of cavity(ies) | 1 | 17 | Tooling Type | 2-plate mold |
| 7 | Product Resin | PA66+GF30 | 18 | Gate Type | 1 drop edge gate |
| 8 | Shrinkage | 1.0035-1.005 | 19 | hot runner system(No.of drop) | Synventive 1 valve hot tip |
| 9 | Part Size | 114.1X593.9X75.6 | 20 | Machine tonnage | 450T |
| 10 | Part Weight(g) | 446.5g | 21 | Designed | John |
| 11 | Part color | Black | 22 | Date | 12.11.2017 |
