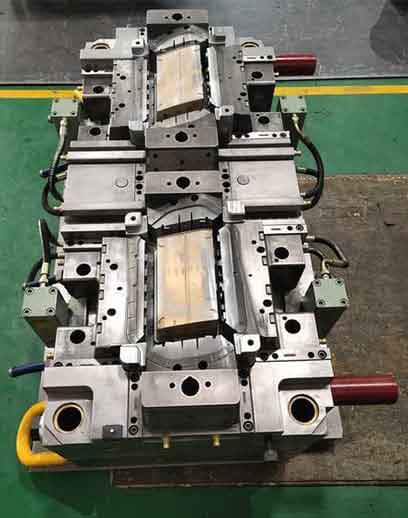

1 | Customer | Toyota | 12 | Mold size(mm) | 1350 X 930 X 923 |
2 | Project Name | W33 | 13 | Cavity side material | 1.2738H |
3 | Part name | LID-AIRBAG | 14 | Core side material | 1.2738H |
4 | Part No. | 682P96UN0A | 15 | Surface Finish - Cav | Dermatoglyph |
5 | Tooling No. | CO19034 | 16 | Surface Finish - Cor | 400# |
6 | No. of cavity ( ies ) | 2 | 17 | ToolingType | 2 plate |
7 | Product Resin | PP | 18 | Gate Type | Sector feed |
8 | Shrinkage | 1.00% | 19 | Hot runner system (No. of drop) | Synventive |
9 | Part Size (mm) | 324.97 X 190.99 X 100.55 | 20 | Machine tonnage | 650T |
10 | Part Weight (g) | 470.2g+470.2g | 21 | Designed | David Dagley |
11 | Part color | white | 22 | Date | 2019-4-30 |
